☁ Problem

Printing some data to the CLI, as a table, usually requires one of the following

fiddling with spaces and tabs to evenly align data and dealing with various edge cases, long strings etc.
using a third-party library, which can have the benefit of nice-looking results, but at the cost of bringing in an extra-dependency just for that

⚑ Goal

Printing tables to the CLI without fiddling with spaces, tabs etc. AND without using a third-party library.

☂ Solution

Use the test/tabwriter package provided by the Go standard library and create a custom function around it that suits almost any scenario that doesn't require sophisticated output.

☵ Example

Boilerplate

Create a folder named print-cli-tables, cd into it and initialize it as a Go module by running go mod init print-cli-tables.

Then create the following tree of folders and files:

printer
   - table_printer.go
main.go

Code

`printer/table_printer.go`

package printer

import (
  "fmt"
  "io"
  "strconv"
  "strings"
  "text/tabwriter"
)

// PrintTable ...
func PrintTable(
  w io.Writer,
  caption string,
  cols []string,
  getNextRows func() (bool, [][]string),
) {
  nbCols := len(cols)
  if nbCols == 0 {
    return
  }
  if len(caption) > 0 {
    fmt.Fprintf(w, "%s:\n\n", caption)
  }
  tw := tabwriter.NewWriter(w, 0, 0, 2, ' ', 0)
  colSep := "\t"
  header := append([]string{"#"}, cols...)
  fmt.Fprintf(tw, "%s%s\n", strings.Join(header, colSep), colSep)
  var sb strings.Builder
  i := 1
  hasMore, rows := getNextRows()
  for hasMore {
    for iRow, row := range rows {
      nbRowCols := len(row)
      for j := 0; j < nbCols; j++ {
        if j < nbRowCols {
          sb.WriteString(row[j])
        }
        sb.WriteString(colSep)
      }
      iRowStr := ""
      if iRow == 0 {
        iRowStr = strconv.Itoa(i)
      }
      fmt.Fprintf(tw, "%s%s%s\n", iRowStr, colSep, sb.String())
      sb.Reset()
    }
    i++
    hasMore, rows = getNextRows()
  }
  _ = tw.Flush()
}

`main.go`

package main

import (
  "fmt"
  "print-cli-tables/printer"
  "strings"
)

type permission struct {
  database         string
  permission       string
  tablePermissions map[string]string
}

type user struct {
  username    string
  email       string
  permissions []*permission
}

var users = []*user{
  &user{
    username: "user1",
    email:    "[email protected]",
    permissions: []*permission{
      &permission{
        database: "db1",
        tablePermissions: map[string]string{
          "table1": "RW",
          "table2": "R",
        },
      },
      &permission{
        database:   "db2",
        permission: "admin",
      },
    },
  },
  &user{
    username: "user2",
    email:    "[email protected]",
    permissions: []*permission{
      &permission{
        database:   "db2",
        permission: "RW",
      },
      &permission{
        database: "db3",
        tablePermissions: map[string]string{
          "table3": "R",
        },
      },
    },
  },
  &user{
    username: "superadmin",
    email:    "[email protected]",
    permissions: []*permission{
      &permission{
        database:   "*",
        permission: "admin",
      },
    },
  },
  &user{
    username: "inactiveuser",
    email:    "[email protected]",
  },
}

func main() {
  cols := []string{"User", "Email", "Database", "Table", "Permissions"}
  i := 0
  strBuilder := &strings.Builder{}
  printer.PrintTable(
    strBuilder, // or just pass os.Stdout
    fmt.Sprintf("%d user(s)", len(users)),
    cols,
    func() (bool, [][]string) {
      if len(users)-1 < i {
        return false, nil
      }
      u := users[i]
      i++
      return true, userToRows(u)
    })
  fmt.Print(strBuilder.String())
}

func userToRows(u *user) [][]string {
  var rows [][]string
  if len(u.permissions) == 0 {
    return [][]string{[]string{u.username, u.email, "-", "-", "-"}}
  }
  rows = make([][]string, 0, len(u.permissions))
  for _, ps := range u.permissions {
    if len(ps.tablePermissions) == 0 {
      rows = append(rows, []string{"", "", ps.database, "*", ps.permission})
      continue
    }
    first := false
    for t, p := range ps.tablePermissions {
      row := []string{"", "", "", t, p}
      if first == false {
        row[2] = ps.database
        first = true
      }
      rows = append(rows, row)
    }
  }
  rows[0][0] = u.username
  rows[0][1] = u.email
  return rows
}

Reading and running the code

In the code above one can observe that the PrintTable function is designed so that it takes the following params:

An io.Writer which can be, for example, os.Stdout if one wishes to print directly to the CLI or strings.Builder if one wants to do something else with the output.
A caption for the table
The table heading (i.e. column names)
A callback function which returns a bool indicating whether there are more rows or not, a two-dimensional array of strings which holds the next row(s). The reason for the two-dimensionality of it is that one might need to print multiple rows for a single data item, as can be seen in the example code and data from main.go where the userToRows function returns more than one row for one user (i.e. multiple permissions for databases and tables).

💡 Basically the PrintTable function only deals with arrays of strings delegating to the caller the responsibility of converting any data it has and also the one of deciding when the table ends (e.g. by keeping a counter while feeding the data through the callback).

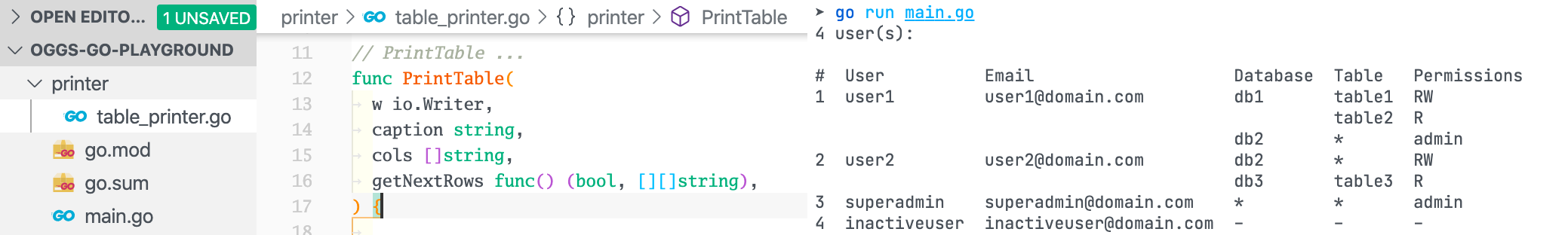

Running the code will show the following output:

➤ go run main.go
4 user(s):

#  User          Email                    Database  Table   Permissions
1  user1         [email protected]         db1       table1  RW
                                                    table2  R
                                          db2       *       admin
2  user2         [email protected]         db2       *       RW
                                          db3       table3  R
3  superadmin    [email protected]    *         *       admin
4  inactiveuser  [email protected]  -         -       -
